The technology quickly creates detailed parts by drawing liquid material into the mold under vacuum pressure. The process is generally as follows:
1. Create a precise master mold: This is often done with the help of 3D printing (e.g. SLA, SLS) or CNC machining techniques. The master needs to be able to withstand a certain temperature, usually 40°C, and these manufacturing techniques produce high-resolution products with a naturally smooth surface.

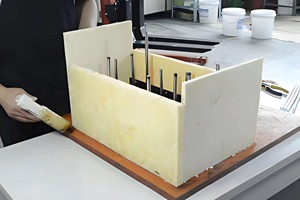

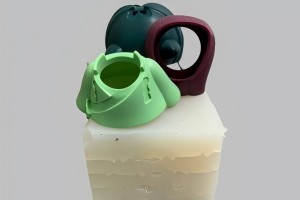

2. Silicone mold making: Liquid silicone is poured into a casting box with a master mold and cured under vacuum. The silicone perfectly encapsulates the master mold. After curing, the mold is cut, the master mold is removed, and a pouring and venting system is added.

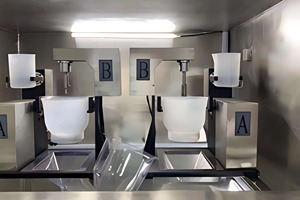

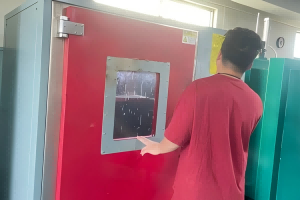

3. Perform vacuum casting: The mold is placed in the vacuum casting machine and the mixed polyurethane resin is injected into the mold cavity and cured under vacuum to prevent air bubbles from mixing in. After curing is complete, the final part is removed and the mold can generally be reused about 30 times, which is suitable for small to medium scale production.
Vacuum casting has significant advantages, such as the ability to manufacture parts with complex geometries and delicate details, which can achieve fine features that are difficult or costly to achieve with traditional manufacturing processes, such as thin walls and inverted buckles; shorter turnaround times compared to traditional methods, such as injection molding, which do not require complex tooling and have high design flexibility; and high flexibility in material selection and part design, which allows the use of a wide range of materials and meets the needs of different products. However, it also has certain limitations, such as limited mold life, generally used 20 - 25 times; relatively slow cycle time, not suitable for high-volume production; sensitive to temperature, need to carefully control the process .
Vacuum Casting - Design Considerations
(1) Release angle
In vacuum molding, the mold release angle is the key to ensure that the part can be smoothly removed from the mold. If the demolding angle is too small, the part may stick to the mold during demolding, resulting in damage to the part or damage to the mold; while too large an angle may affect the dimensional accuracy and appearance of the part. Generally, a release angle of 0.5° - 2° is recommended, depending on the complexity and geometry of the part. For example, for simple shape, smooth surface parts, the mold release angle can take a smaller value; for parts with complex inverted or internal structure, it is necessary to appropriately increase the mold release angle.
(2) Tolerance
Tolerance is the range of the actual and design size of the parts allowed deviation, affecting the assembly accuracy and product performance. Vacuum casting tolerance control is strict, linear size tolerance is usually ± 0.1 - ± 0.3mm, the design should be based on the use of the requirements set tolerance, high precision parts such as assembly holes, shaft tolerance should be small, the appearance of the part can be relaxed. It should be noted that the tolerance may be different in different directions, and designers should understand the casting process characteristics to prevent quality problems caused by improper tolerances.
(3) Wall thickness
1. Importance of Uniform Wall Thickness: Uniform wall thickness is critical to the success of polyurethane vacuum casting. Uneven wall thicknesses result in varying cooling and curing rates, which may cause part distortion, shrinkage marks, or internal stress concentrations that affect part quality and performance. For example, when wall thickness varies greatly, thicker parts cool slowly and shrink, while thinner parts cool faster and cure first, causing stresses to build up at the junction of thickness and thinness, distorting or cracking the part.
2. Recommended Wall Thickness Range: Generally speaking, the minimum wall thickness recommended for small and medium-sized parts is 0.75 - 1.5mm, while the wall thickness of large-sized parts needs to be increased in order to withstand greater external forces and ensure structural strength. The optimum wall thickness depends on the material properties, functional requirements and production process. Rigid materials can reduce the wall thickness, the need to withstand impact or pressure parts need to increase the thickness.
(4) inverted buckle and overhanging structure
1. Buckling Methods: Buckling is a reverse geometric feature on parts in polyurethane vacuum casting that requires special design techniques to handle. Common methods include the use of detachable mold components, designing movable cores or slides, and extracting these parts after curing before demolding. For example, internally inverted parts can be demolded with removable cores. The flexibility of silicone molds can also be used to handle inverted buckles, for cases where the inverted buckles are shallow and there is little resistance to release.
2. Overhanging structure design points: Overhanging structure refers to the unsupported part of the overhanging part, the design needs to consider the casting stability. By adding support structure to prevent deformation or collapse, support can be removed after demolding. Pay attention to the position and layout of the support to avoid affecting the appearance and function of the part. Adjust the thickness and angle of the overhanging part, e.g. increase the thickness to improve the strength, reduce the angle to reduce the risk of deformation.
(5) Protruding platform
1. Dimensional Requirements: Tabs are used for mounting screws and other connectors, and their dimensions are designed to meet specific requirements. The minimum height and diameter is usually 1mm to ensure strength. Wall thickness should not exceed 60% of the nominal wall thickness of the part to reduce shrinkage marks in the curing process to ensure surface quality.

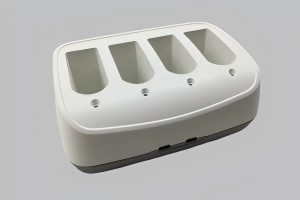

2. Location layout: The layout of the tabs needs to take into account the assembly requirements and structure, to ensure that it is easy for the connectors to be installed and operated, and to avoid setting them in high stress areas to prevent damage. For example, in the design of electronic enclosures, the tabs should correspond to the circuit board mounting holes for easy fixing; in the design of mechanical parts, the tabs should be far away from stress-concentrated areas, such as edges and corners.
(6) Stiffener
1. Enhance strength and reduce warpage: reinforcement is used to enhance the strength and rigidity of the parts and reduce warpage deformation during molding. Reasonable layout of reinforcement can be dispersed external forces, enhance the load-bearing capacity. For example, crisscrossing reinforcement in large flat parts can significantly improve bending strength and prevent warping during use.
2. Design parameters: The thickness of reinforcement is recommended to be 0.5 - 0.7 times the wall thickness to ensure strength and avoid shrinkage. The height should be adapted to the structural and strength requirements and should not be too high as it may affect the appearance and mold release. Spacing is usually 2 - 3 times the height to balance strength and cost. Reinforcement should be oriented in the same direction as the force, e.g. along the direction of tension in tensile force parts and perpendicular to the bending axis in bending force parts.
(7) Relief details
1. Realizability: Vacuum casting can accurately reproduce fine relief detail, which is particularly suitable for parts with decorative or functional surface textures. Whether it is a small text, complex patterns or delicate texture, can be designed through the master mold on the part of the perfect display. For example, artistic decorations, brand logos for electronic product housings, etc. The high precision of vacuum casting can meet the high demand for details.
2. Design considerations: When designing relief, its depth, width and edge transition need to be considered. The depth should not be too deep, so as not to affect the resin filling and cause lack of material. The relief width and edge transition should be reasonable to prevent damage to the mold when demolding. The depth is generally controlled at 0.1 - 0.5mm, adjusted according to the size of the part and material properties. Soft materials should reduce the depth, large-sized parts can be appropriately increased to maintain the visual effect. Avoid sharp angles and narrow recesses to reduce casting difficulty and risk of mold damage. When making the master mold, high-precision machining process such as laser engraving and EDM should be used to ensure the surface finish and precision of the master mold.
