Oxytetracycline Drying

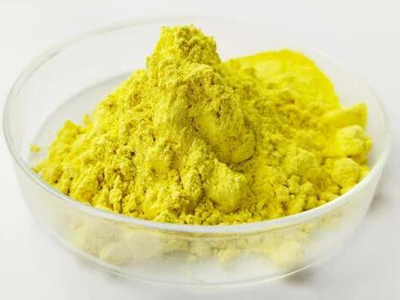

Oxytetracycline Drying refers to the critical industrial process of removing residual solvents and moisture from crystallized or precipitated oxytetracycline – a broad-spectrum tetracycline antibiotic – to produce a stable, free-flowing powder suitable for formulation into final dosage forms (e.g., tablets, capsules, animal feed premixes, or injectable solutions). Common Drying Methods:Flash Dryer

Oxytetracycline Drying refers to the critical industrial process of removing residual solvents and moisture from crystallized or precipitated oxytetracycline – a broad-spectrum tetracycline antibiotic – to produce a stable, free-flowing powder suitable for formulation into final dosage forms (e.g., tablets, capsules, animal feed premixes, or injectable solutions).

Purpose & Importance

Stability Enhancement Residual solvents (like methanol, ethanol, or butanol used in crystallization) and moisture accelerate degradation. Drying ensures chemical stability and extends shelf life.

Powder Handling Converts wet crystalscake into a dry, free-flowing powder for efficient milling, blending, and encapsulationtableting.

Microbial Control Low moisture content inhibits microbial growth.

Regulatory Compliance Must meet strict pharmacopeial limits (e.g., USP, EP) for residual solvents and loss on drying (LOD).

Common Drying Methods

Flash Dryer:
High-Efficiency Drying Mechanism: XSG Series Spin Flash Dryer employs a tangential air inlet and a high-speed stirrer to create a powerful rotating wind field. This ensures efficient heat transfer and uniform drying of paste, cake, and slurry materials.
Advanced Material Processing: The equipment processes raw materials through a combination of cutting, shearing, blowing, floating, and rotating actions, transforming them into granulated form. This enhances material separation and strengthens the heating exchange process.

Airflow dryer:

Airflow dryer is a continuous, efficient and fast solid fluidized drying method. Loose powder and granular materials are dispersed and suspended in hot air, and moisture is instantly removed during the airflow entrainment process. It is suitable for drying the surface water of powder and granular materials with a particle size range of 5μm ~ 0.5mm.

Rotary Dryers
This machine transfers powder or granular materials into a double-cone container through vacuum conveying or manual feeding. As the container rotates continuously, the materials undergo complex impact motion in the container to achieve uniform mixing.

Critical Parameters

Temperature Control Oxytetracycline is heat-sensitive. Temperatures must be carefully controlled (usually below 60-70°C) to avoid decomposition and loss of potency.

Residual Solvent Levels Drying must reduce solvents like methanol to levels below ICH Q3C guidelines (e.g., Methanol ≤ 3000 ppm).

Moisture Content Final LOD typically needs to be very low (often  1-2%).

Crystal Form & Particle Size The drying process should not induce undesirable polymorphic changes or excessive particle agglomerationbreakage affecting bioavailability or processability.
